LV FCMAplus soft starter
Our LV FCMAplus soft starters are air-core based series reactors, providing a complete starting solution for any motor application involving pumps, blowers, fans or compressors. We design customized solutions specific to each motor, analyzing motor and load torque speed curves, current speed and moment of inertia.
Soft starters are provided with a bypass device (power contactor or air circuit breaker) of customer preferred make. When required by the customer, we offer a complete solution with motor feeder i.e. ACB /power contactor with MPR and metering for switching and protection purpose. All our starters are automated using a PLC with HMI which creates reliability and helps in remote support, allowing for commissioning operation during COVID times.

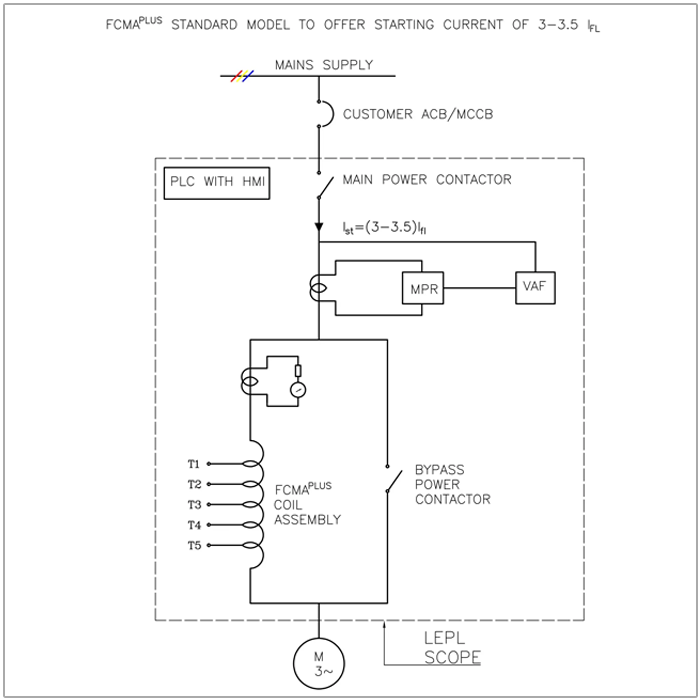

The standard starting current committed by our soft starters is 3-3.5 times the full load current. We can also reduce the starting current up to 1 to 1.5 times the full load current if required by using a Dynamic Compensator.
Our LV soft starters offer the best competitive value for our customers and offer superior value than the conventional electronic soft starters.
| Technical Specifications | |
| Input Voltage | 415V/690V |
| Motor Power Range | Upto 2,000 kW |
| Application | Pump, Compressor, Fan, Blower |
| Frequency | 50Hz/60Hz |
| Temperature Operation Range | 0oC to 55o C |
| Installation | Indoor |
| Cooling Method | Air Cooled |
| Insulation Class | Class F or customized |
| Standard | IEC 60076-6 |
| Construction | Air Core, Vacuum Pressure Epoxy Impregnated |
| Conductor | Electrolytic Copper |
| Starting Current | Standard Models: 3-3.5 times starting current Special Models: 1.5 times full load current with Dynamic Compensator |
| Reactor variation | 5-tap design at 5% voltage difference at each tap |
