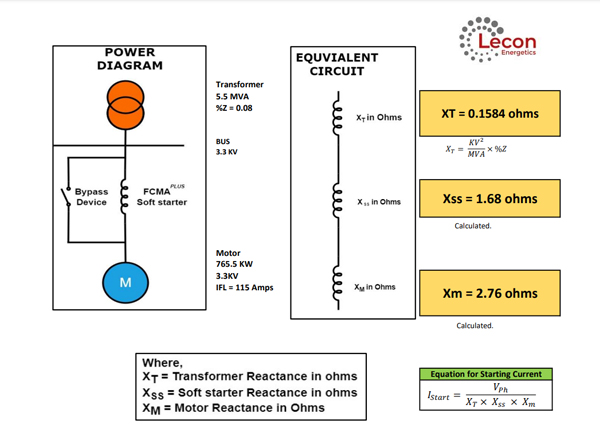

Impedance Measurement

Our competitive edge lies in our transparency to declare soft starter Impedance during pre-bid stage itself. Further we precisely measure the impedance of the reactor coils as per IEC 60076-6, proving the exact starting current of the motor as committed to our customers.

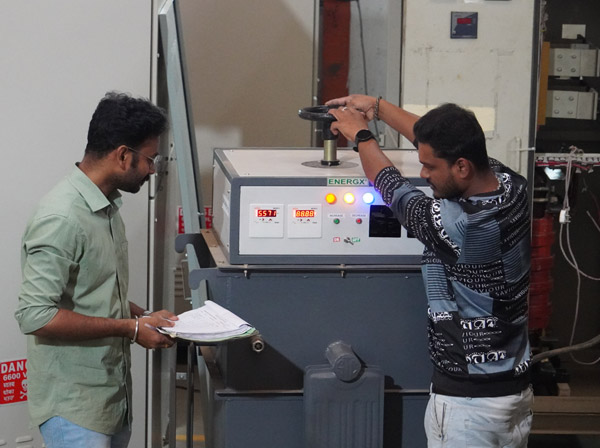

Short Time Temperature Rise Test

We conduct a short rise temperature test (current injection test) to ensure our coils can withstand the temperature rise associated with the operation of soft starter motors. It is crucial for coils to withstand the rise in temperature associated with a sudden rise in temperature. We inject DC current to ensure that coils can withstand the starting current for twice the amount of acceleration time that the coils are designed for.

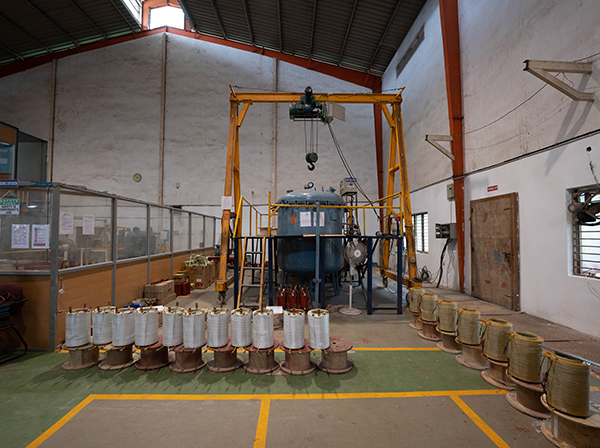

Vacuum Pressure Impregnation

Our VPI technology stands out among competitors by providing superior mechanical strength and electrical insulating properties to Soft Starter and Series Reactor coils It ensures that each turn, layer, and interstice is thoroughly impregnated with resin. This unique feature guarantees exceptional rigidity and insulation integrity, resulting in longer-lasting soft starters compared to those of our competitors.

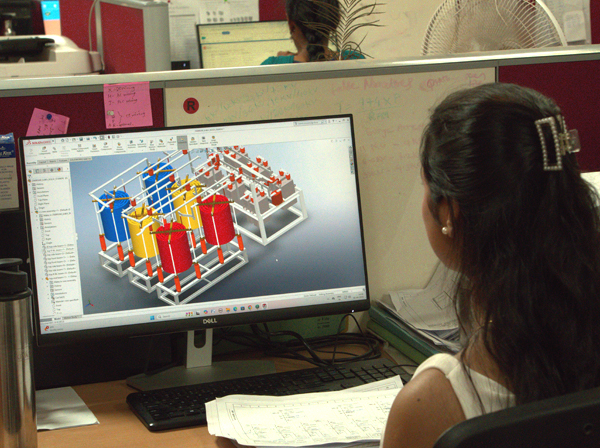

3-D Modelling Capability: Solidworks

With 3-D modelling capabilities we can share the internal layout details with customers. This helps to ensure spacing and clearances are good for maintenance and reliable operations. It gives assurance to customers before the product is manufactured

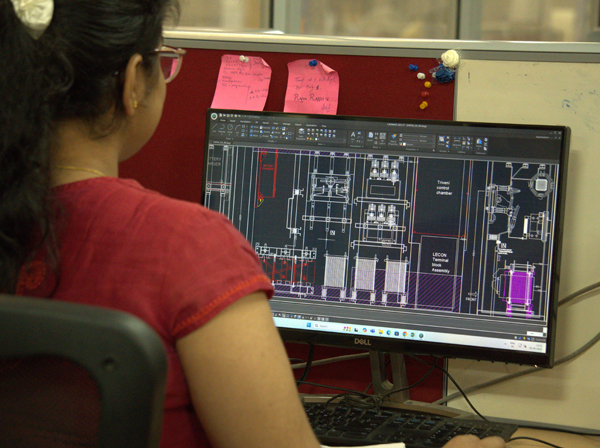

Auto-Cad Electrical

AutoCAD electrical, features tailored to workplace, such as symbol libraries, automatic wire numbering, and real-time error checking. This makes us highly effective for designing circuits, wiring diagrams, panel layouts, and PLC modules. Additionally, it helps reduce design errors by offering intelligent design tools and standardization options that comply with industry regulations.   Furthermore, the software can generate comprehensive documentation such as bills of materials and wire lists automatically, which enhances workflow efficiency and project accuracy.
